#05 - EPS, Epoxy Resin swirl, 5- fin box, concave deck extravaganza!

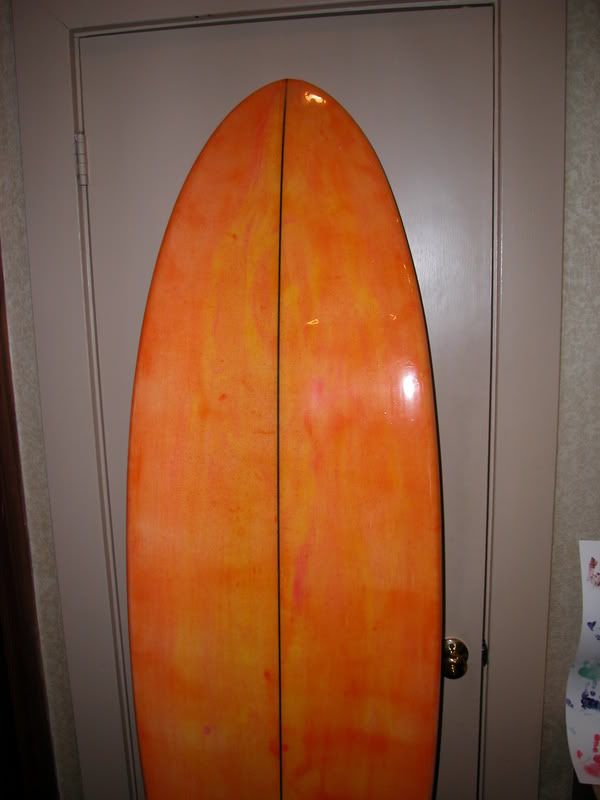

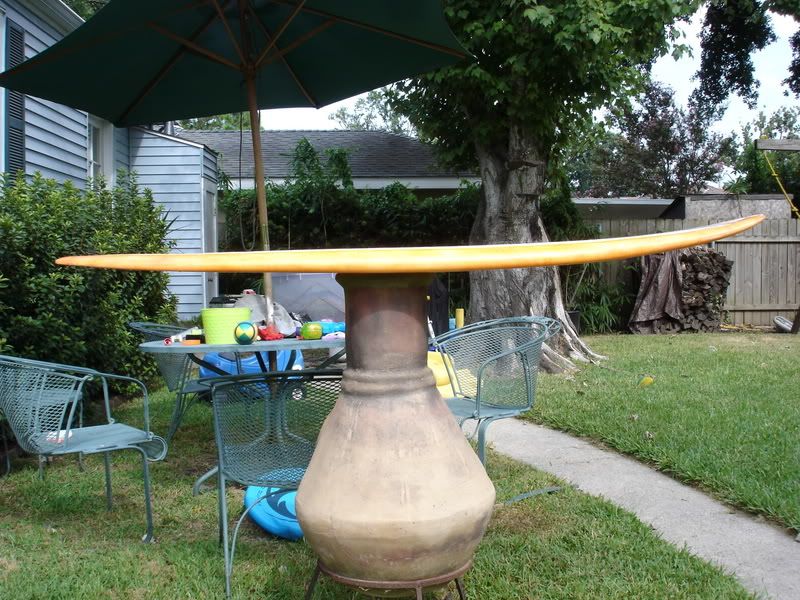

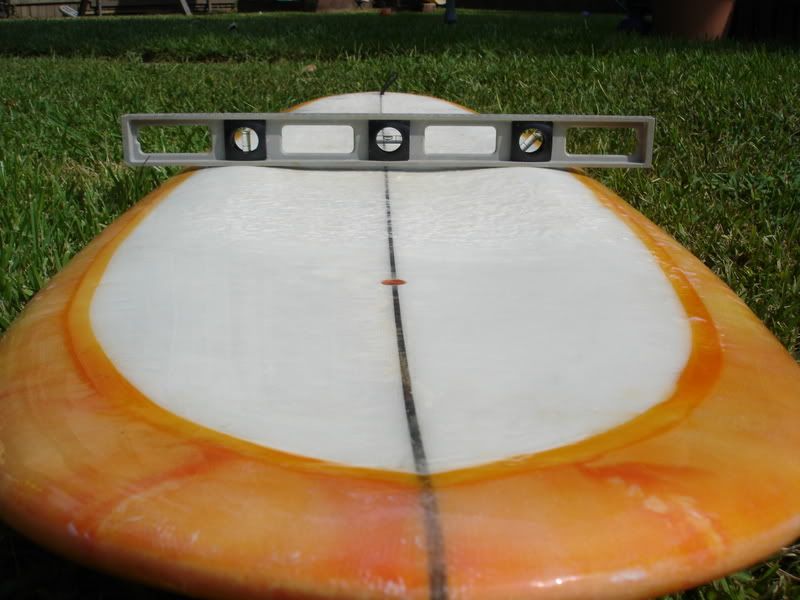

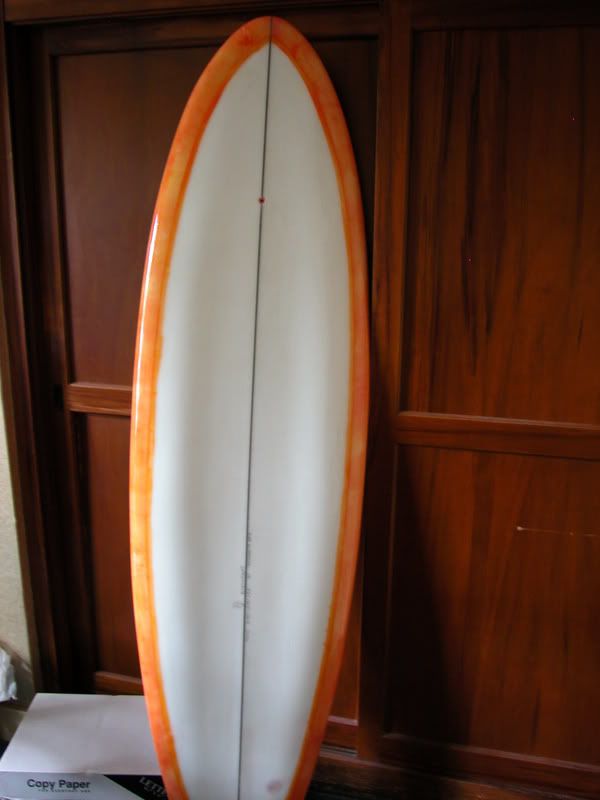

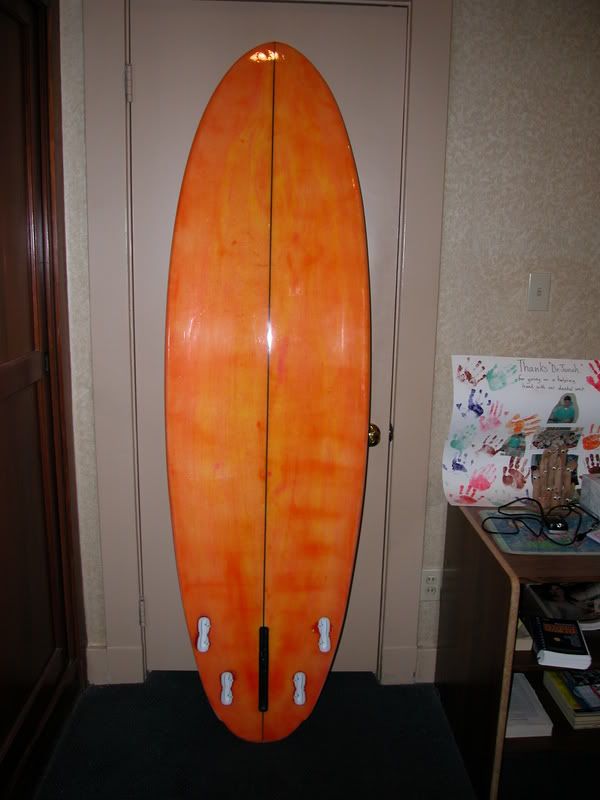

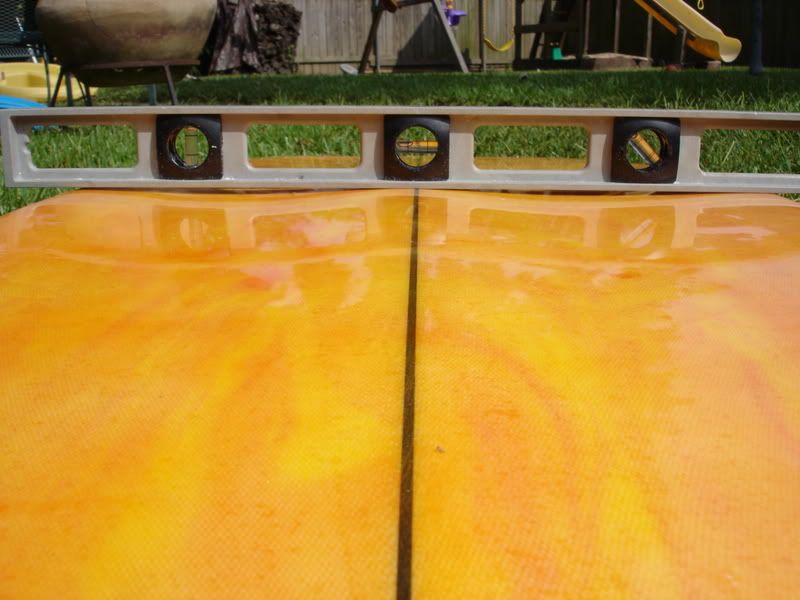

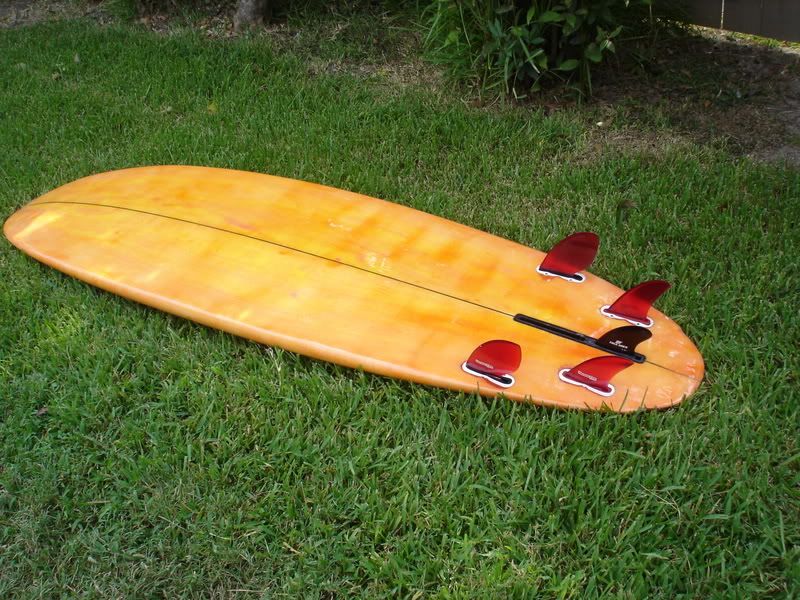

6’6" 16" N x 21" W x 15.5" T 2.25" thick. I “borrowed” this design from Rusty’s Toad, which I thought looked interesting. 3/8" concave deck, 1/4" double concave bottom from nose to tail, but goes to flat a few inches from the tail, slight vee in last 1/3 of board. Probox quad set up with 10.5" center fin box. Fin position taken from archives, particularly PlusOneShaper’s fin placement in the “Round pin quad” thread. Thought I would throw that in to prove that I actually go to the archives sometimes. Thanks to Larry at Probox for overnighting new 6 degree inserts after the tape over my boxes began to float in the resin as I set the boxes. I had to crack out the inserts, but luckily my fin boxes stayed in place! Used Resin Research epoxy and resin pigment- yellow and red. Mixed a big batch of yellow and added a small batch of red, probably stirred 2 times, should have only stirred once, colors muddied a little more than I wanted. I should have followed the advice from archives.

I took this board to Mexico, but the surf was small, only about 3 ft, so I wasn’t able to push it’s limits, it did catch small waves easily, and the thinness due to the concavity did not seem to effect paddling or wave catching. I surfed it as a quad and with 5 fins. Very skatey, builds speed quickly as you pump rail to rail. Surfs like a fish. I like the concave deck. It seems to be more responsive to toe and heel pressure. I found it more comfortable to paddle due to the cradling effect. My new favorite board.

Nice job! It looks a lot longer in the pics. Could you post a pic with the board standing next to someone to give it some perspective?

very nice mate

love to hear your thoughts on fin rake for a five finner

ive been surfing one for the last 4 days

i see your fins are more upright like i mentioned in my poodlespanker thread

maybe even those cutaways would do a lot to alleviate the stickiness im experiencing

grooovy

'zosurf would be proud !!

let us know how it goes …

with

…ALL the fin variations , eh ?

cheers

ben

Awesome!, wish I had one of my own.

i just read this thread…

looked at all the pics and dates

of the posts and realised…

this place needs Chip!

nice board though. looks fun. good job

throw a pin on the lap and start production.

nice Fin board! i like the swirl. epoxy/eps requires a touch of which i am not capable of, …yet!

my next batch will include a board similar to yours. cheers!

Yeah!

After 'most 28 years making my own boards I finally made a swirl, same as you, mostly yellow with a little red. I stirred once, and didn’t get the mixing of color near as complete as you…

Next time, I’d only just “drizzle” a thin dribble of red pigmented resin into the yellow without any stirring at all, then only pour on the board enough to barely stay ahead of the spreading as I move the squeegee first down the center, then a pass on each rail.

Yeah yeah, I otta post a pic.
