[quote="$1"]
surfoils, I'm going to wear you out, but I know people want to know,

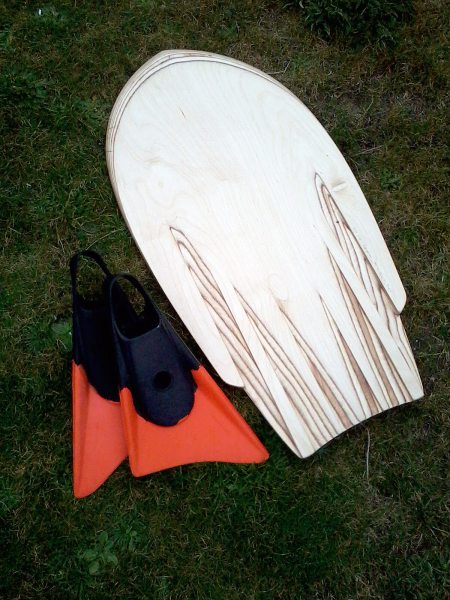

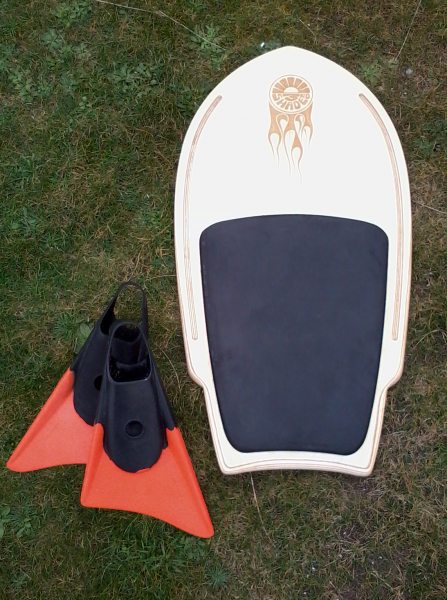

Can you tell us what you want about this board?
[/quote]
Malaroo, after I rode the first aluminium foils
[IMG]http://i153.photobucket.com/albums/s225/SURFFOILS/Rearaluminiumhydrofoil.jpg[/IMG]
[IMG]http://i153.photobucket.com/albums/s225/SURFFOILS/aluminiumfoils.jpg[/IMG]
I thought I should investigate this low-level hydrofoiling a bit more.
I split the design into 2 components, the struts and the foils. I designed the 4.5 in Aluminium struts you see there, drilled holes thru them to reduce weight.
Theyre connected to the b/board with plastic screws used for leashes. And connected to the foils with .5 in Stainless bolts and nuts.
[IMG]http://i153.photobucket.com/albums/s225/SURFFOILS/detailofcurvesandstruts2006.jpg[/IMG]
I did try struts that were flexible,
[IMG]http://i153.photobucket.com/albums/s225/SURFFOILS/shorthydrofoil.jpg[/IMG]
[IMG]http://i153.photobucket.com/albums/s225/SURFFOILS/curved_straight_struts.jpg[/IMG]
as well as plastic struts that gave the foils some suspension...
[IMG]http://i153.photobucket.com/albums/s225/SURFFOILS/suspensionstruts.jpg[/IMG]
but the Aluminium ones never had any problems and still survive.
The foils were a journey too, I pinned up a photo of Baron Hanns Von Schertel in the shed and started reading all the hydrofoil theory my head could handle, PMing guys here on Sways as well as joining Hydrofoil forums and boat building sites.
In the end I had a head full of hydrofoil theory / dimensions and foils shape but nothing specific for riding waves on foils so I ignored everything Id learned and just made the flat plate 2mm thick Aluminium ones. And they worked. Well.
So I became my own reference and just wrote notes after each surf and numbered each foil so I could refer back to the foil and the notes.
Both front and back foils were the same dims, mostly 22 in wide X 8 in chord, with a combined area of 352 sq in, and this area is enough to plane at low speeds, larger foils with bigger area plane a fraction quicker but why go bigger if theres little gain ?
Because the Aluminium flate plate foils worked so well I chose to not foil the foils at all, no NACA trickiness at all, I just rounded out the leading and trailing edge and left it at that.
The rail to rail shapes were taken from surfboard design and I tried flat / convex and concave and those contours behaved similarly to how they do on a surfboard.
Flat rail to rail foils were fast but stiff and the best shape I found for the Front foil was a subtle concave thru the middle with upturned tips.
