For a single foil, I would highly suggest a delta-type shape or something with sweep-back or rake. Although it generates more induced drag, it is much more forgiving in terms of stall angle.
In the video, you can see that the foil has a larger, lift generating and load bearing front foil, and a smaller, stabilizing rear foil, to impart pitch stability. If the rear foil’s angle were adjustable, pitch stability could be adjusted.
although it is about RC aircraft, RC aircraft have the incredible similarity to surf craft of operating in the same Reynolds number range, so many parallels can be made.

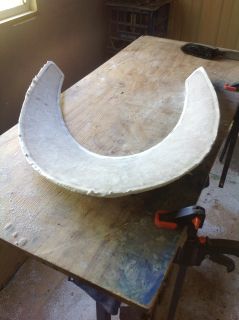

All the resin and glass work is done, about 17 layers of 6oz and innegra with the 3ply inside. Its a hydrofoil but it looks like a big V shaped fin. Not as heavy as I thought it might be.
I just covered it in a thin slurry with micro balloons and I’ll start foiling it tomorrow.
I mentioned to Roy a few days ago that I got the idea to do this foil after I tried a tunnel fin.
Hi Clint, Im just making some broad conceptual strokes and hopefully some forward steps in foil design.
** If **I have a plan its to make a shortboard foil that works in everyday waves.
Heres a bit of foil design theory Im working on…
Looking at the standard foil for skiing, its mainly a flat plate designed for use at a controlled range of speeds…
But some boats and ships have Vee shaped foils where as the speed increases the boat rises and less foil area is required. So thats a shape i am going to use.
For everyday surfing its impractical to have a long strut where the rider is 3 foot above the water surface.
It looks cool but theres a lot of weight in the vertical strut so it makes sense to me that the board is a maximum of around a foot above the waves surface.
SO a short strut ( ~12 inches ) is the way to go and my previous prototypes have shown that a foil with a length (chord) of about 24 inches is suitably stable for surfing speeds.
Another prarmeter to work with is the area. So far Ive found that a foil, or a pair of foils , can easily plane on a knee-high wave with a combined area of around 250 square inches.
Doesnt seem too hard really? … to design a 12in X 24in foil with an area of 250 sq inches ?
3 ply and it will get a few layers of glass either side.
It’s one of two foils that I’ll make into a V-shaped surface piercing setup.
Ive gone away from the elongated ‘fin’ look as they flex under use and would need to be a lot thicker to maintain a stable and reliable shape under pressure. I’ve found out that concaves don’t work either.
The numbers are right on this setup to plane at a range of speeds but my hunch would be that the next generation will be even smaller, more compact foils.
