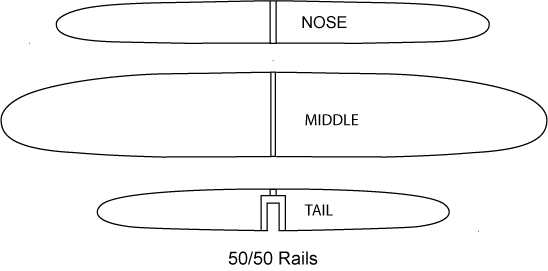

Im about to start my first displacment hull. its going to be 7’6 x 21 x 2 7/8. kind of a eggy pin shape. im 6’5 180 and between beginner/intermedit (if that matters). my question is what kind of bevel is in the nose and tail. i know the rails are pretty neutrel around the middle but does the nose or tail have a higher or lower then netrel bevel?also i was wondering if you could possibly post i profile view from nose, tail and middle so i can get a grip on the rail as well as roll of the deck and bottom(i will try to attach one below just as an example). i really appriciate it! thanks!
It isn’t a displacement hull but similar rails to what you might be after. 2 1/2" wide at its widest and about 31/16 bevel out of flat. It tapered to no bevel at about 2’ up from the tail. When sanding, make sure you don’t roll across the break, but keep the edge. I did a hard tuck/ chine too. No concave at all.
[img_assist|nid=1075386|title=Bottom|desc=|link=none|align=left|width=592|height=784]
Really stable and fast. It won’t snap a turn, but oh what a glide.
Thanks for the info. glide is what im going for with this one. similar shape to what im going for as well. looks good. thanks again
