Hi, some of you might heard of the Hydroflex technology that was invented by some german shapers. They claim to improve surface bonding between laminate and core by some miraculous methods. A few years ago they moved their production to the US and started shaping for …Lost and other brands. Recently I stumbled across the patent that is available online and might be of interest for you guys. I haven’t yet read through it, but I’ll write a small summary soon.
What I’ve seen from Hydroflex is XPS / EPS boards that you inflate for different stiffness. Repaired several, what a joke. According to those who tried it, even worse joke. Just what’s needed on an XPS / EPS core, an inflation valve and some hot sun.
I’m not so amazed by the pump for altering the flex, but i want to get some inspirations for my next xps-build, they have some good ideas to prevent delamination.
I might worry about adhesion if I was using XPS, but with EPS I just don’t think it’s an issue. I think most people who glass EPS boards use a water soluble spackle and those boards seem to hold up just fine. I use an epoxy/microbaloon slurry to get the epoxy/epoxy bond but most people say that’s unnecessary. These boards will get dinged and waterlogged before they’ll delam. If I was really worried about it I’d take Huie’s advice and use a layer of ultralight nonwoven in my lam to get the adhesion.
As for pumping air into surfboards I can see that working to the extent the integrity of the finished/ sanded glass job remains perfect. No pinholes anywhere, no open weave, no dings, no cracks. Over the life of the average board I just don’t think that’s realistic.
I repaired my friend’s hydroflex supercharger (EPS). The board is light
because it was lightly glassed, and the vacuum bag lam is too thin, so it
dings easily. The “enrooted fiber” seems more like a business choice
than an actual technical improvement.
The pressure in the board
inhibits water getting in the board when dinged, which is a good thing.
My mate like this board which satisfied him, so it’s a good product,
although a bit expensive here in France.
I see and repair several kinds of epoxy surfboards, windsurf boards
and kite boards, and the only tech that really impresses me is tufskin
from starboard: really strong and still light.
Sorry for my frenglish.
So how exactly does this so-called “3D Glassing” technique work? Anyone know?
not exactly, but something like:
grooves on deck lengthwise, that make the lam stiffer
glassfibre shot into the blank, possibly done before in airplane wings? this is to enhance bond
bufo started vacuuming PU blanks, and soon found it that delams happened easily...
then he use EPS, but still had delam problem
then he used to make/drill holes in the board, and let epoxy pour into it, these strains broke too
then he found the solution i guess by shooting the fibres [and some epoxy] into the blank
couple years back, he further tuned his board by using a vent...
i stopped surfing the boards long ago because i broke everyone i ever had, only the PU held up over time, funny thing eh?
i would like to try a new one, 6ft1 * 19 1/8 or so, in the 2200-2400 grams weight range, not much lighter...
I’m going to do some home brew hydroflex tech on a couple of boards I’m working on that are being bult using a combo of eps and xps for the cores.

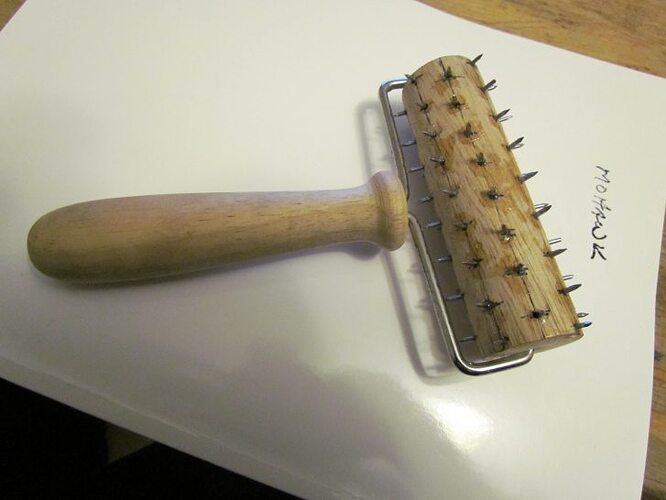

Here’s a picture of the hole “moshing” tool I just built to allow me to punch the small holes into the blank @ 1/4" deep.
The holes will be filled with a mixture of milled fiberglass and epoxy.
VanHelsing.
If that soil aerator is for improving bonding on XPS. Don’t think it will help much VH. Very few holes relative to total bonding surface. PU and EPS have lots of small pores over the entire surface for bonding.
I think you’d be better off with 40-60 grit sandpaper. Many small grooves, peaks and valleys, will give much more surface area for bonding than a few holes.
Just my $0.02.
Absolutely bgsurf, I couldn’t agee with you more.
Although my credibility here is perceived as low, I’ve had experience building boards with both eps and xps since the early 8o’s.
For the record, I’ve only ever done one hand glass layup in my life. It’s vacuum layup or nothing for me.
The rough sanding technique you speak of is pretty much manditory with xps usage.
What I’m doing is going one step beyond what you suggest with the addition of the deeper vertical milled glass or even carbon /resin structures…
My thinking is : I’m not doing it for bonding reasons… The rough sanding and materials like nonwoven fabics of nylon or polypropylene look after that. That being said I have test panels that prove otherwise and show that the holes DO indeed aid bonding especially on xps. Try thinking of the additional holes as roots of a tree, or the hook side of Velcro…
I’m looking at it from a skin thickening perspective to aid in reducing heel denting and slightly increasing the overall outside skin density to a generalized 1/4" depth…
Consider it like the “bed of nails” act you see at the circus or a magician’s show.
My theory is it’s like applying 1/4" core-cell skins albiet with much much less overall strength, but with the improvement of retaining the flexibilty that hard foam skins steal from the core.
Have you heard of Hydroflex Natural ?? It’s the application of the Hydroflex bonding tech to standard PU foam boards with non of this air pumping nonsence. I don’t think Hydroflex has done this primarily for bonding reasons but for overall durability reasons with the added bonus of an improved glass to foam bond.
While my idea is probably not the same deal , being just the hobbyist builder that I am, I’m really not that concerned with the “correct” or established methods of doing things, or bothered if I get flamed for my ideas… I’ve explained my intentions and that’s as far as I can elaborate at this time.
VanHelsing.
P.S. I’ve done small test panels using 1/8" pvc stringer material and 1" thick xps sheets glued together using 5 different types of glues, primarily in search for the best glue for this structure… Then I’ve gone through the difficult struggle of pulling them all apart. On all the samples both the xps as well as the 1/8" pvc stringer were roughed up with 40 grit sandpaper. Some of the samples had the “moshing” holes added to the xps in addition to the rough sanding, others did not… The results were not unexpected but did put a huge smile on my face.
That’s all I can say on this topic at this time. And at that I’ve said way too much.
VH
