...it begins , finally !
Thanks again for sending the corecell , Huie .....

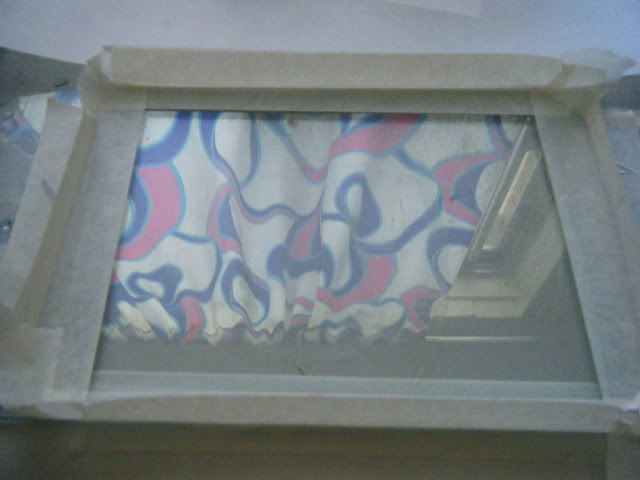

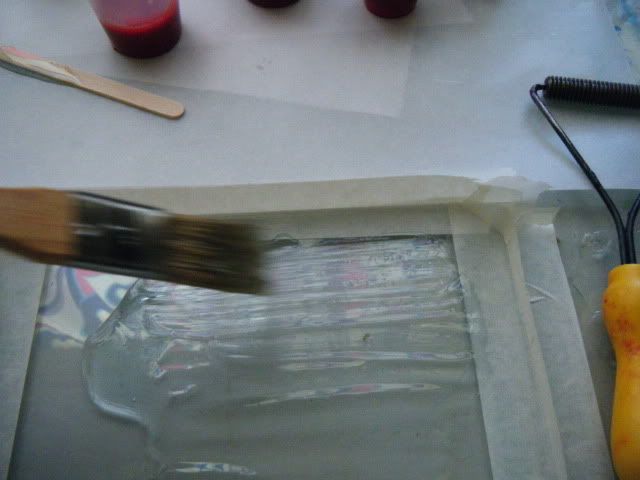

2 layers of 4oz cloth ...

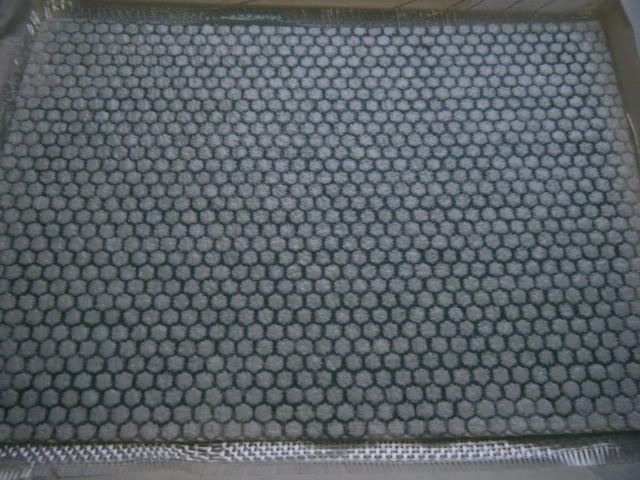

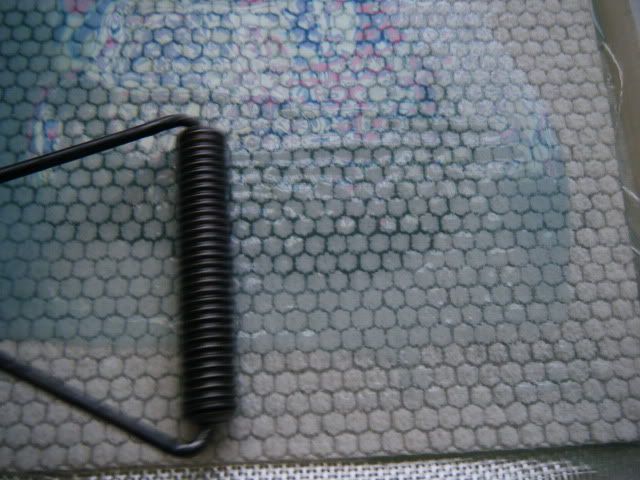

1 layer 'coremat' / ? 'corecell'? material...

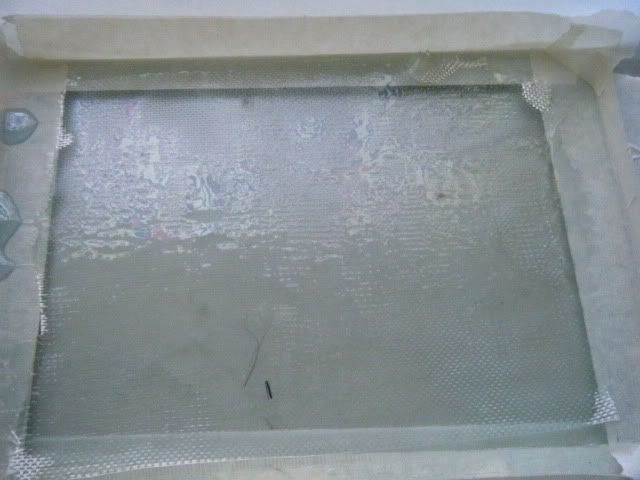

two more layers 4oz...

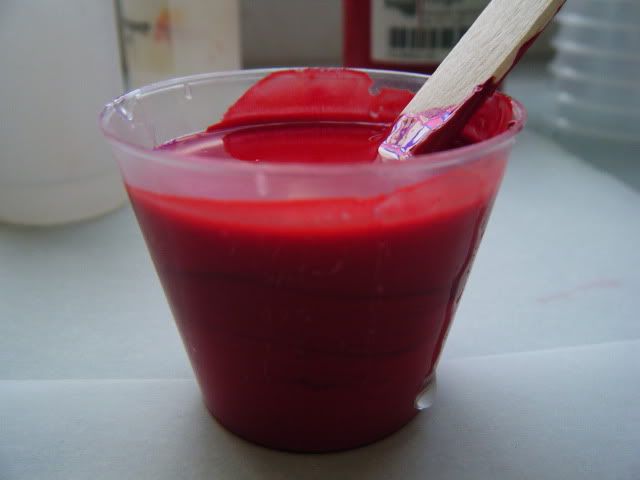

mix pigment [25mls to 250 mls laminating resin , to get a red 'tint' happening , hopefully !]

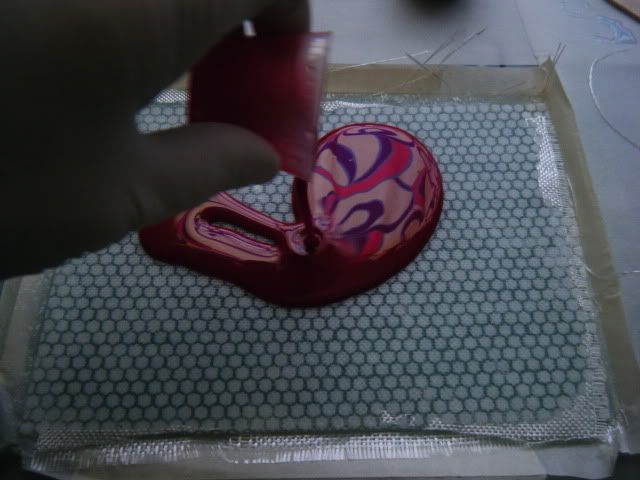

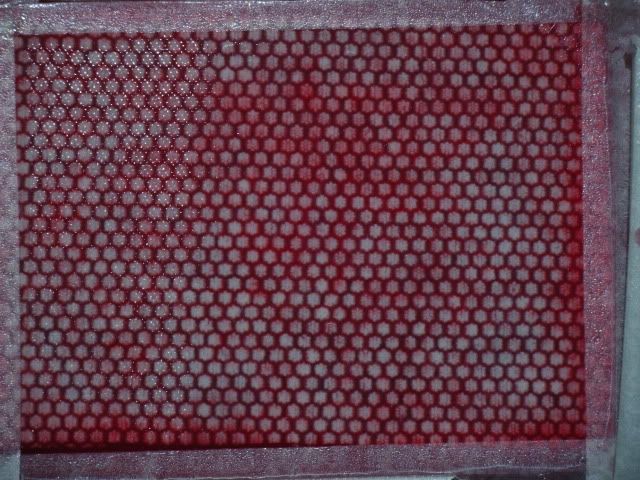

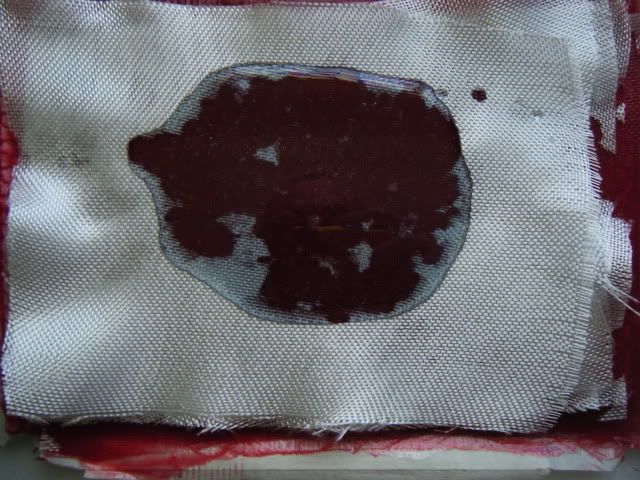

5 layers in , red pigment [another 15 layers of red pigment to go ] ....

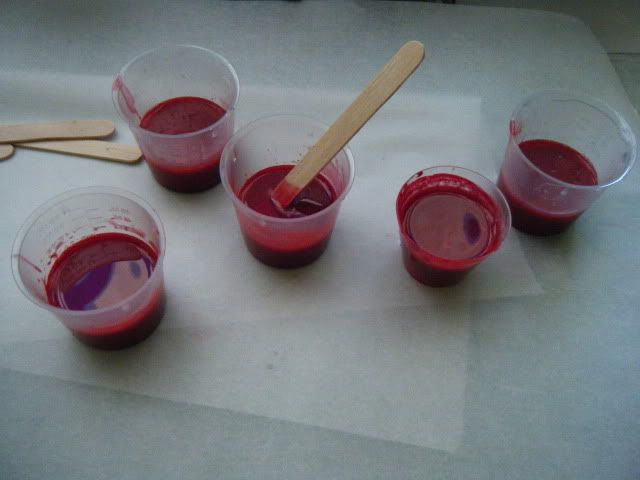

after the 15 layers of red pigment are layed up , then 15 layers of clear to get the lighter tint [total : 35 layers of 4oz cloth , layed up in batches of 5 layers at a time [7 lots of 25ml cups used ]...
As it was a nice 35 degree celsius day , I let the panel cure for an hour or two , before doing the filler coat ['sanding coat'] ...
After leaving the filler coat to cure for a few more hours , I prized the panel off the glass [ the good ol' trusty paint scraper came to the rescue again , eh ?!]

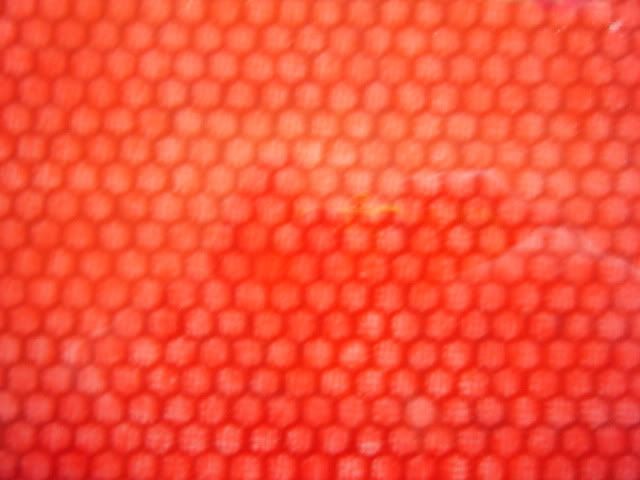

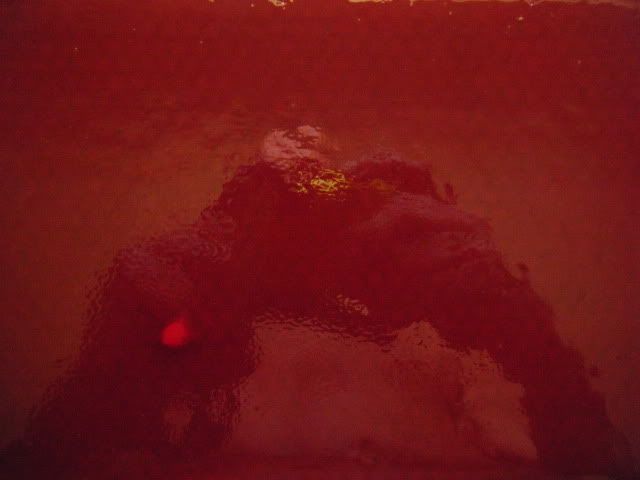

And , this is what it looked like when I flipped it over ....
[the more pulled-back view , without the camera and me reflected in it....
So , Huie , when I get some more cloth , I'll lay up the other coremat piece.
I'm thinking , as the panels are 5 x 7" , that I'll either make
two 4 1/2" x 6" - 6 1/2" keels ,
or ...
four roughly M.R. 'TX' sized fins , to compliment a set of three already existing red tint [corecell cored] M3-M5 sized [roughly] fins . These were previously glassed on fins , which I FCS tabbed a while ago ...
...to be continued....
cheers !
Ben Chipper [aka " Chipfins61"]
p.s. - while I had the red tint remaining , I also layed up two 4" x 6 " red tint / carbon fibre combo panels *, and another 4" x 6" red tint panel . I want to do another 4" x 6" red tint panel , so I will have two small , double foiled trailer fins for a quad setup , and / or as thruster trailer fins on two separate boards ...
* [ photos of these will probably end up on the 'panels' thread ]
