The Lord Book

Excerpts:


Checked out from a great library near my house–it’s apparently out of print again–checked Cornell Maritime Press website

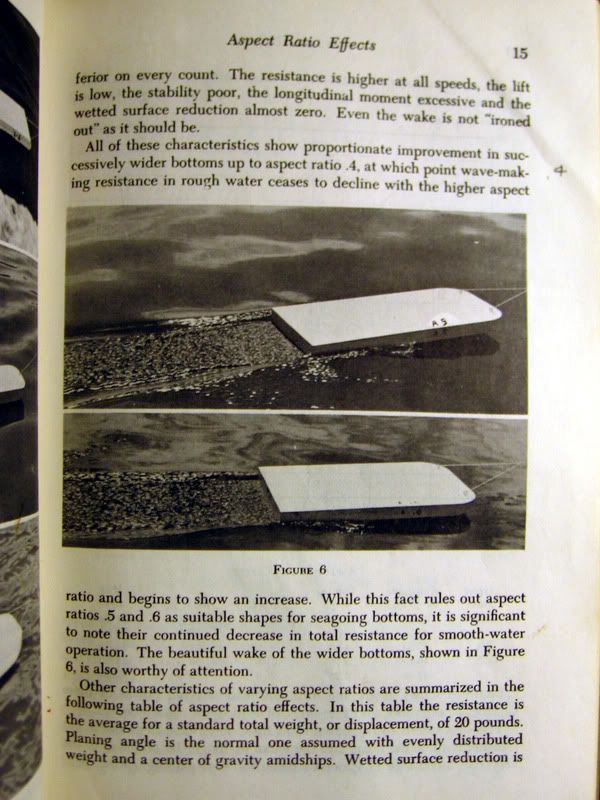

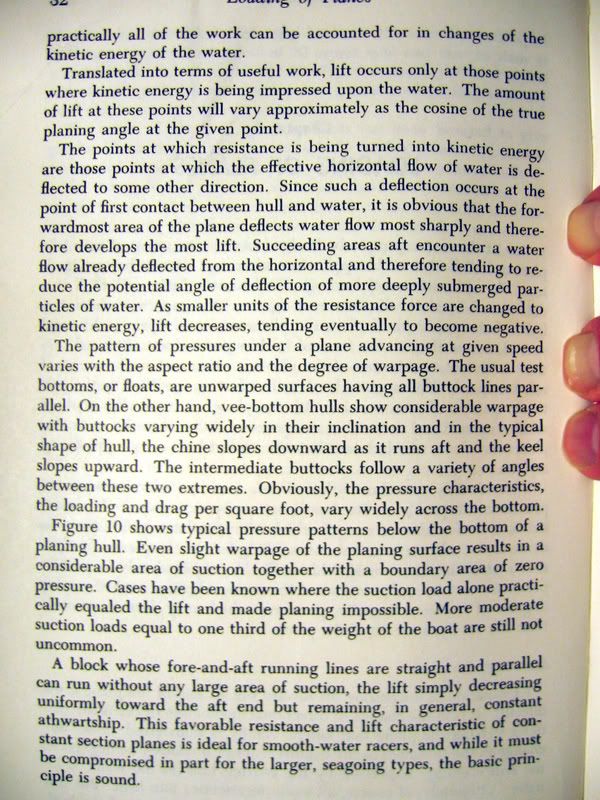

Commenting on some phenomena

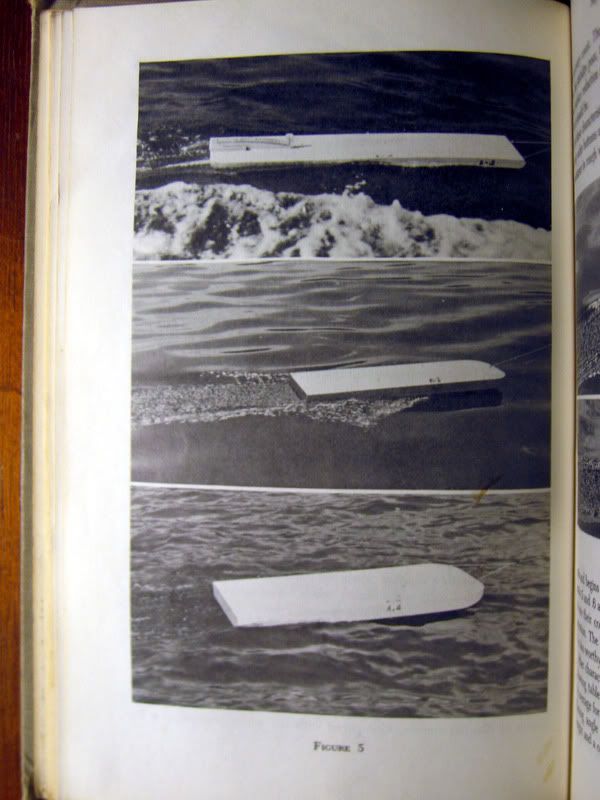

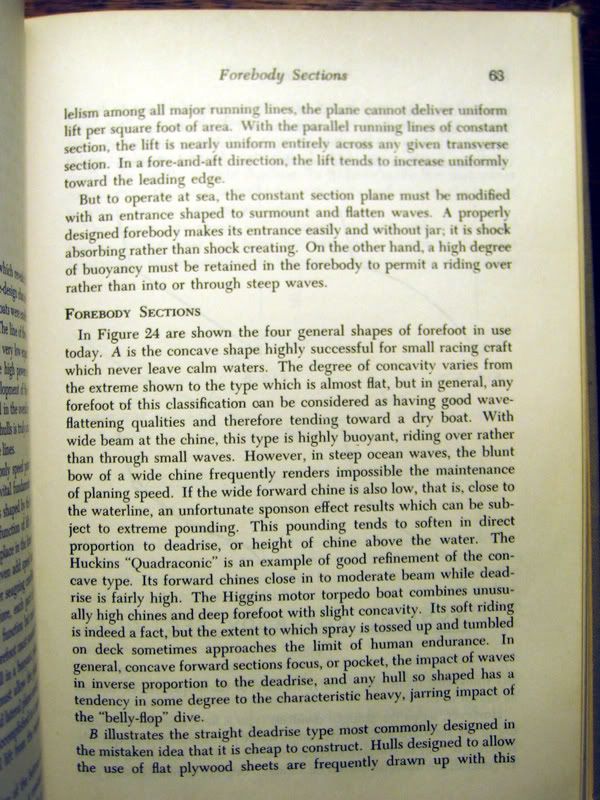

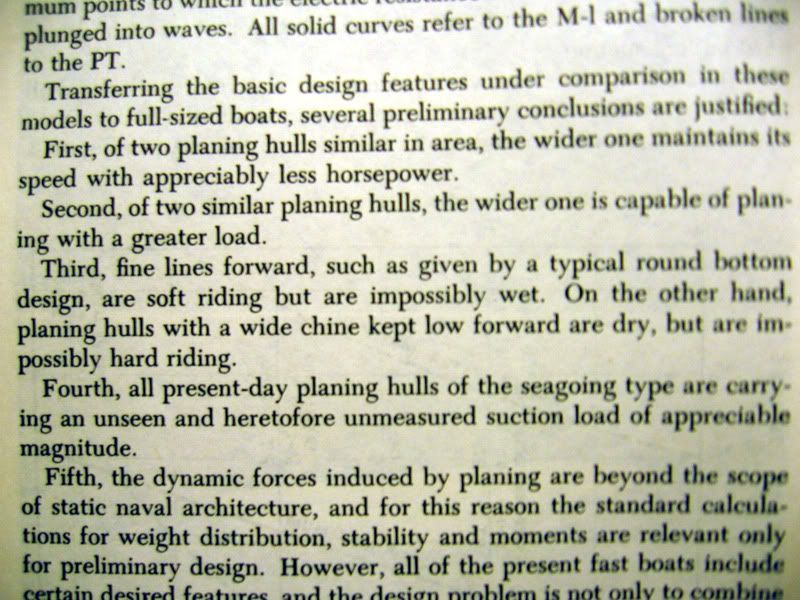

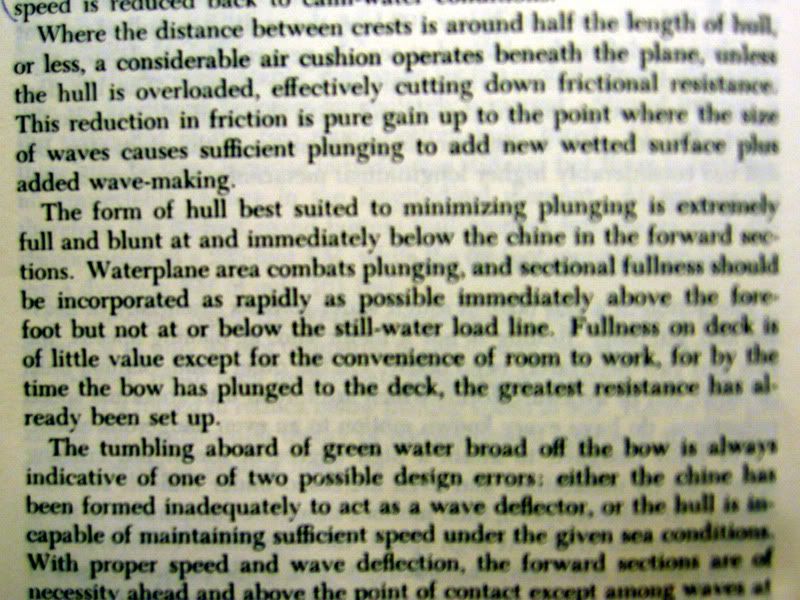

It seems to me this explains Simmons’ bellied wide nose, or rather, all bellied wide noses

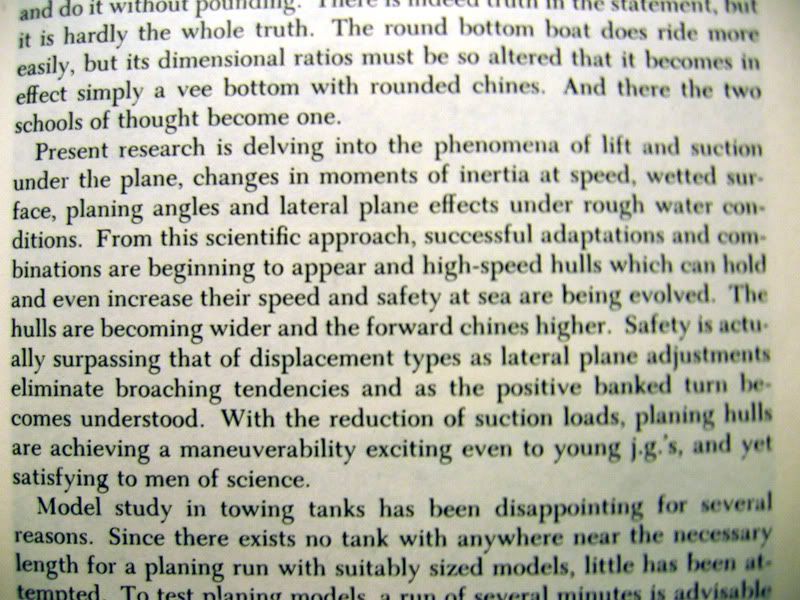

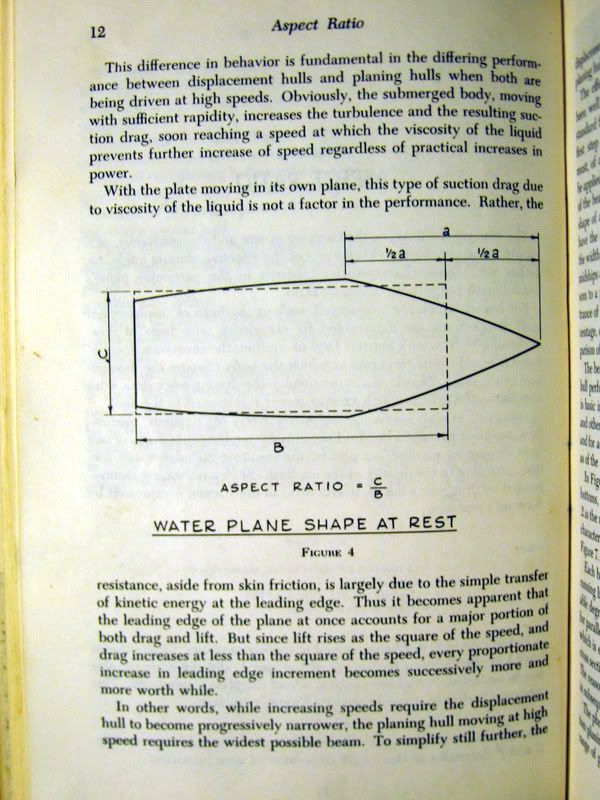

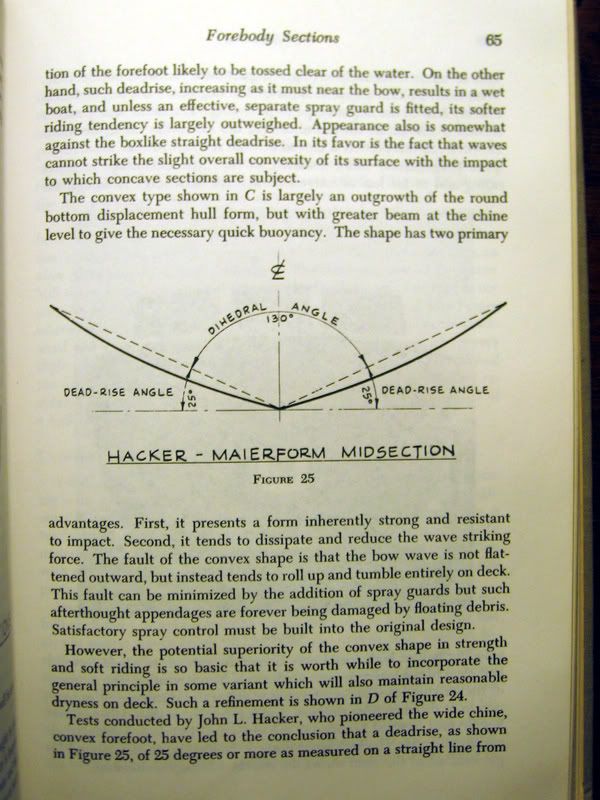

Lift explained and beam of leading edge of plane

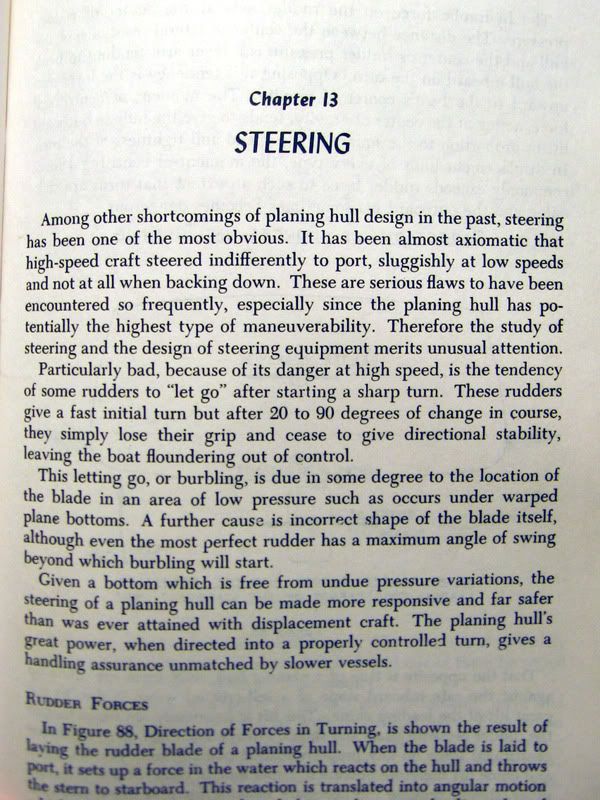

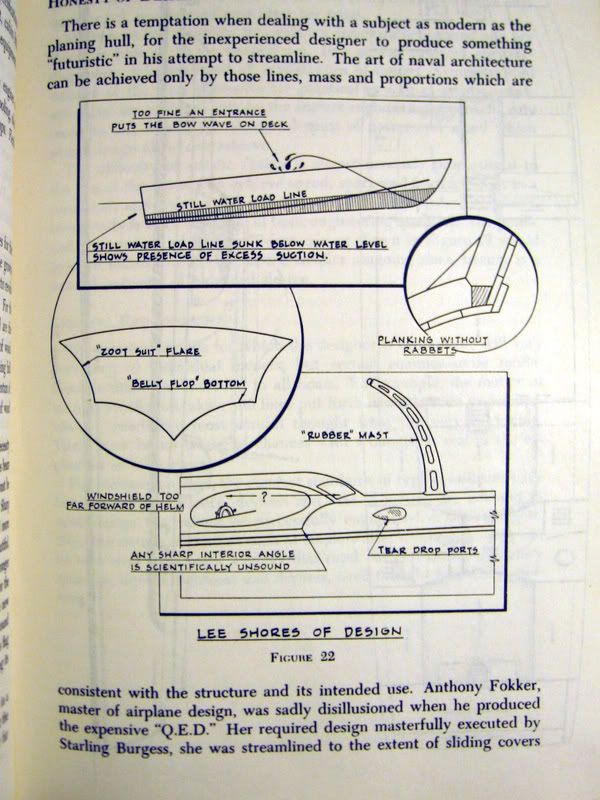

Design tenets and issues

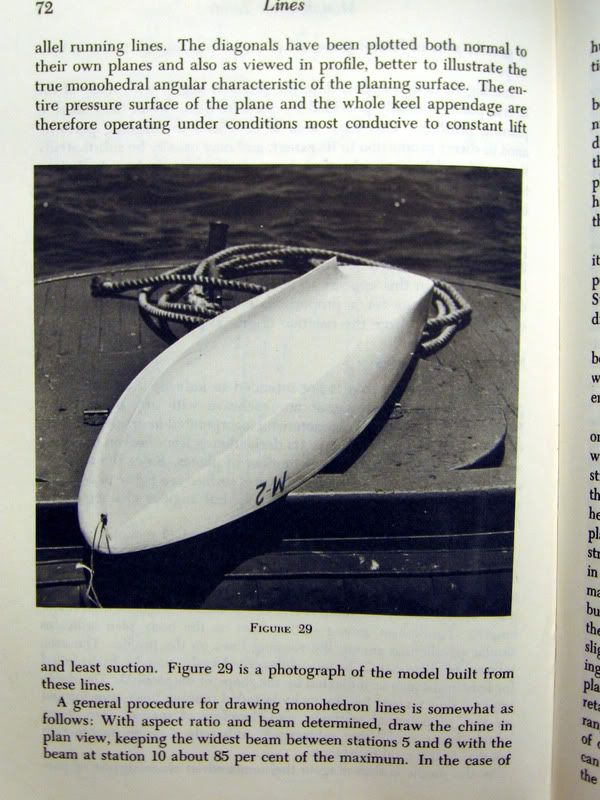

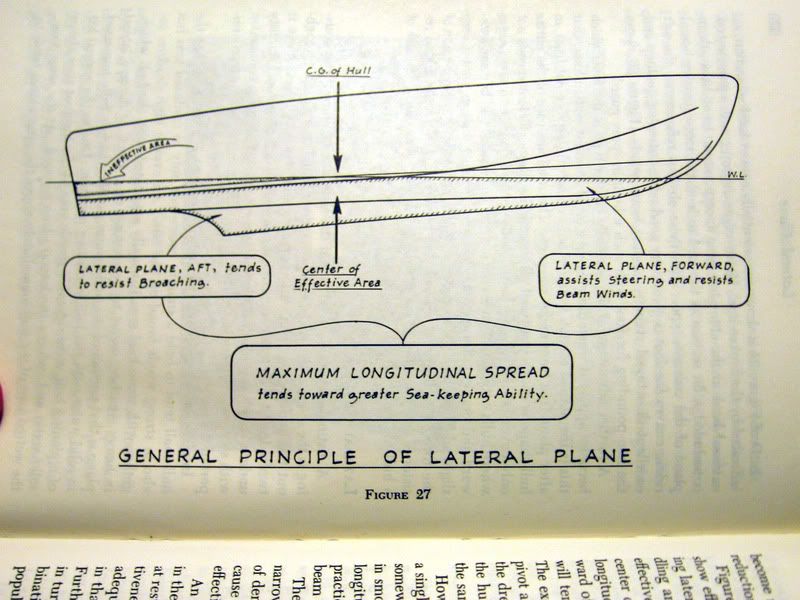

Interesting idea for keel fin explored?

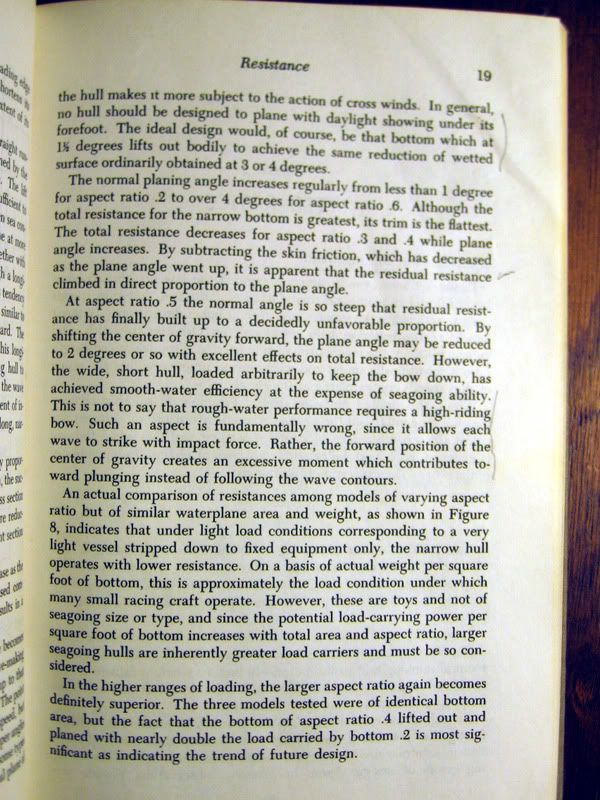

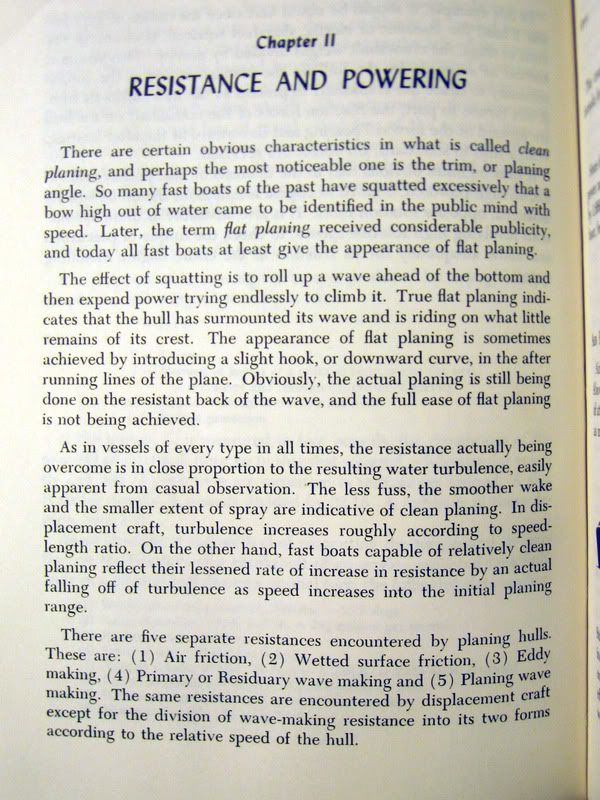

Interesting discussion of parasitic drag

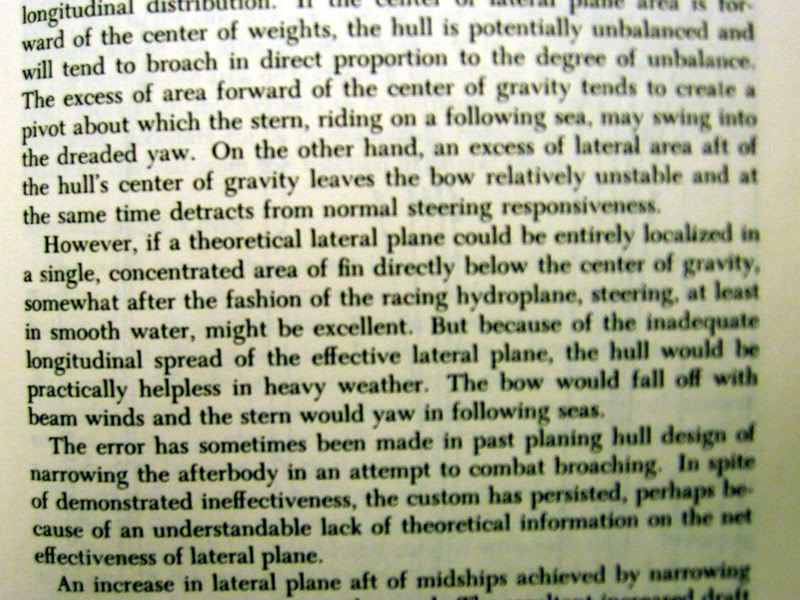

Apropos of single fins?

Some editorial

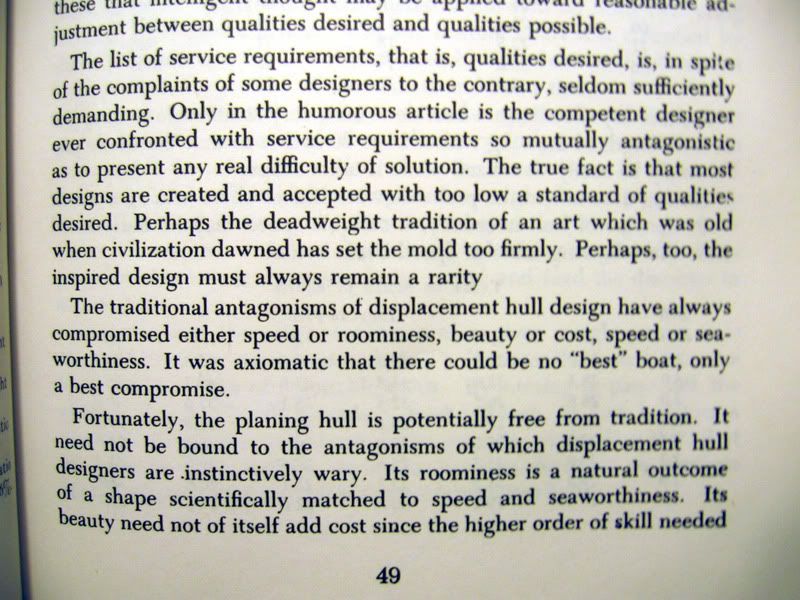

“Traditional antagonisms”

I tried to buy a used one last year for $250.00 but after I placed my order, I was told it wasn’t available.

The board in fig. 29 with the 2 trailing fins looks similar to a drawing my dad made back in the late 60’s early 70’s. My brother sent it to Brewer or Noll and never heard a thing.

Quote:

Checked out from a great library near my house–it’s apparently out of print again–checked Cornell Maritime Press website

Naval Architecture of Planing Hulls by Dr. Lindsay Lord, Naval Architect/Marine Engineer, was and remains the essential text on the design and performance of planing hulls. He was a working naval architect, designed quite a few successful boats.

There’s no meaningful discussion of surfcraft design that can’t benefit from a look at this and I’d think of it as a prerequisite. At least, if you want to get past the ‘Duude, it’s bitchin’ radical, duuude’ level.

The older ( from the 1946 edition on ) editions are fine and reccommended if you can’t lay hands on the 1963 edition. Alibris has three right now. In the same way that the surfboard community is squirreling away Skil model 100 planers, we oughtta be acquiring copies of this.

Also- http://www.cmptp.com/graphics/Catalog_2008-2009.pdf the catalog of Cornell Maritime Press and http://www.usni.org/store/index.asp?DEPARTMENT_ID=25 - the US Naval Institute Press. Lots of good stuff.

The Old Man gave me his copy of Lord’s book, then made me study it. Had things gone a bit differently, I’d be a practicing NA right now, instead of a beat-up old fisherman. But… the both of us wanted to go to sea when we were of the age to go to university, and we did.

doc…

I have a copy of LORDs book. What a great read. He had a huge influence on Simmons and I can see why.

Great post. I read that when I was 18, totally messed up my life (haha).

I had no idea back then that Simmons had referenced the work.

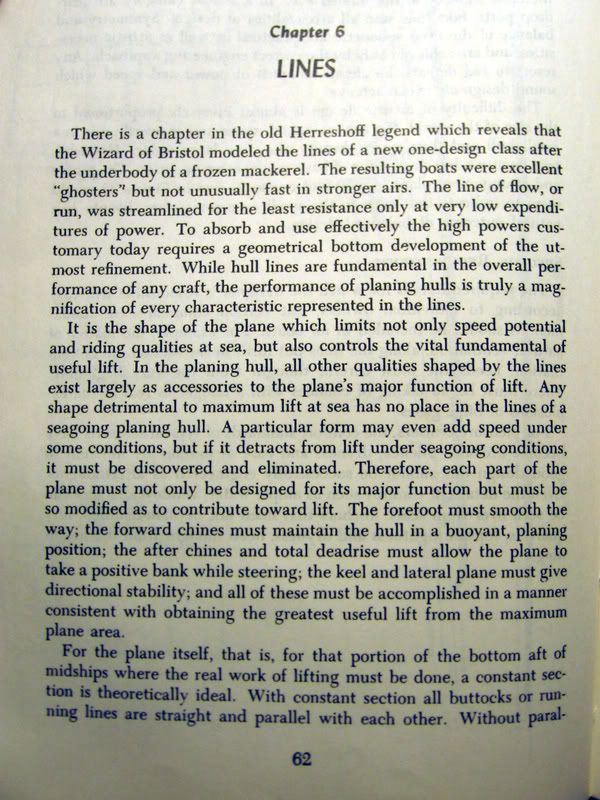

I like the part about the ‘‘underbody of a frozen mackeral’’.

Have read it 4 or 5 times, part of the J.O.B. but also for fun.

Careful though,some of Lord’s ideas don’t exactly work as explained,

especially related to stepped hulls, which is a entire volume unto itself.

and no, the stepped tail thruster did not work, but it looked wicked cool.

Pete

Scan the book and convert to a PDF…

Similar to what someone did with “Surfboard Design and Construction”…

Would be a great resource…

Hmmm. And I have a great copier/scanner at work and a PDF thing on my comp there too.

I did try to get everything usable for us into this post.

Anyways, here’s a Sea Sled, which he keeps referring to:

http://ivb-boats.netfirms.com/HistoryOf-SeaSled.html

Here’s a modern one someone is building:

http://sea-sled.com/

Invented “inverted V”

http://en.wikipedia.org/wiki/Hickman_Sea_Sled

I got my copy (hardcover, 1963 edition, in excellent condition) about 6 months ago off the internet for $60. So they are out there to be found.

I’ll scan some of the pages to take some of the work load off of you, if you plan on making a PDF.

I also have a good book called “Shape and Flow: The Fluid Dynamics of Drag”, by Ascher H. Shapiro. Which is a good foundation for understanding for how fluid acts, and how fins work.

Great post – thanks for sharing!

PDFs of the Lord book and the book obproud was referencing would make great resources here at Sways.

I’ll get to work on it.

I’m going to do this but I’m not going to have a good place to put it online and I don’t think I would anyway, so if you’d like …

pm, em, or what have you

Quote:
I'm going to do this but I'm not going to have a good place to put it online and I don't think I would anyway, so if you'd like ...

pm, em, or what have you

I’ll be happy to give the pdf’s a home online so that anyone can download them.

PM me at your convenience whenever they’re done.

I found the ‘shape and flow’ book at a rented house in Torquay during a Vic teams titles once. Had some good info in it, but it’s old too.

I think the scientific understanding of things has progressed a little since then.

But that all depends on what you are designing I guess.

Quote:

I’ll be happy to give the pdf’s a home online so that anyone can download them.

PM me at your convenience whenever they’re done.

And I’d be happy to do a ackup location. At your convenience

doc…

Quote:

I found the ‘shape and flow’ book at a rented house in Torquay during a Vic teams titles once. Had some good info in it, but it’s old too.

I think the scientific understanding of things has progressed a little since then.

But that all depends on what you are designing I guess.

It’s not that old. 50 years. The book is not very complex, it just explains and demonstrates how bodies act and react in fluid flow. I don’t think that the basic theories and observations have changed much, or at all. Maybe the more complex theories and formulas, that are not in this book, have been modified in the past 50 years, but I don’t think there has been a paradigm shift in the scientific framework in this field, that would deem this information outdated.

Is there something specific in the book that you found incorrect, or did you discount it simply because it is old?

If it is the latter I would suggest reading “The Structure of Scientific Revolutions” by Thomas Kuhn, where you can learn about how “the scientific understanding of things” progresses and doesn’t progress. It is a must read for anyone who is interested in science, the history, the future, and the role of science.

Mmmhmm. What it mainly says for our purposes is flat things plane and wider things plane better and things with wider fuller noses don’t pearl. OBP?

PDF’d everything but the stuff about ballasts and bulkheads and anchors and propellers this evening. 4 chapters of said very boat-specific stuff omitted outright, but the Addenda, Index, Table of Contents, Preface, Introduction are all in my bunch–it’s all I need + .

I can e-mail anyone all I got.

g

Quote:

Mmmhmm. What it mainly says for our purposes is flat things plane and wider things plane better and things with wider fuller noses don’t pearl. OBP?

My previous post was with regard to the Shape and Flow book.

But, yeah, it basically says that flat things plane better, and wide things get up and plane faster.

OBP and Doc–you guys are welcome to copies of the PDFs–etmo is posting them up somewhere and will post the link–but you guys can PM me and I’ll email you.
