Greetings everyone,
Doing research on the twinzer set up measurements for the canards.
Looking for distance from rail, distance main twin fin, toe in and cant.
Many thanks

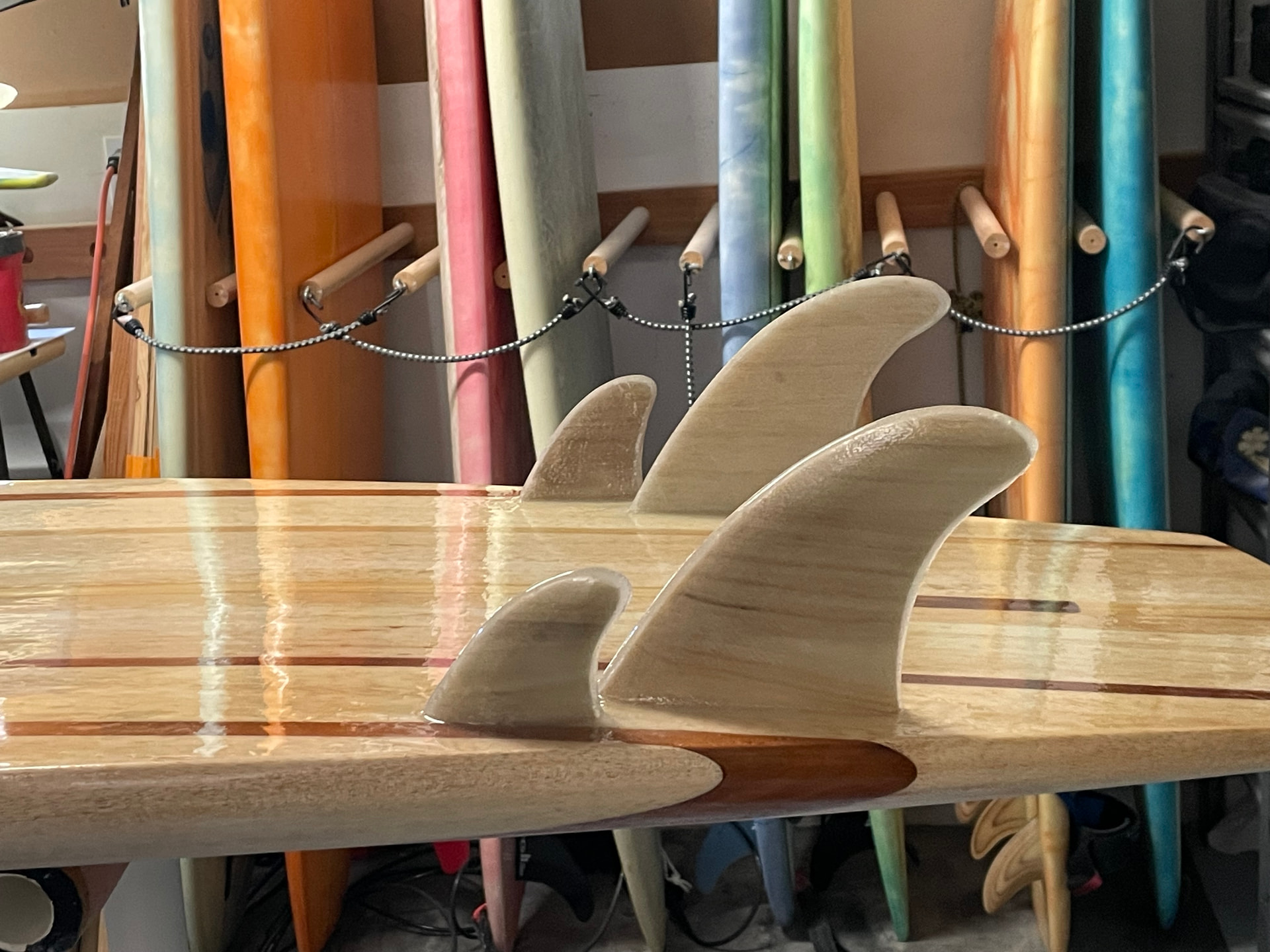

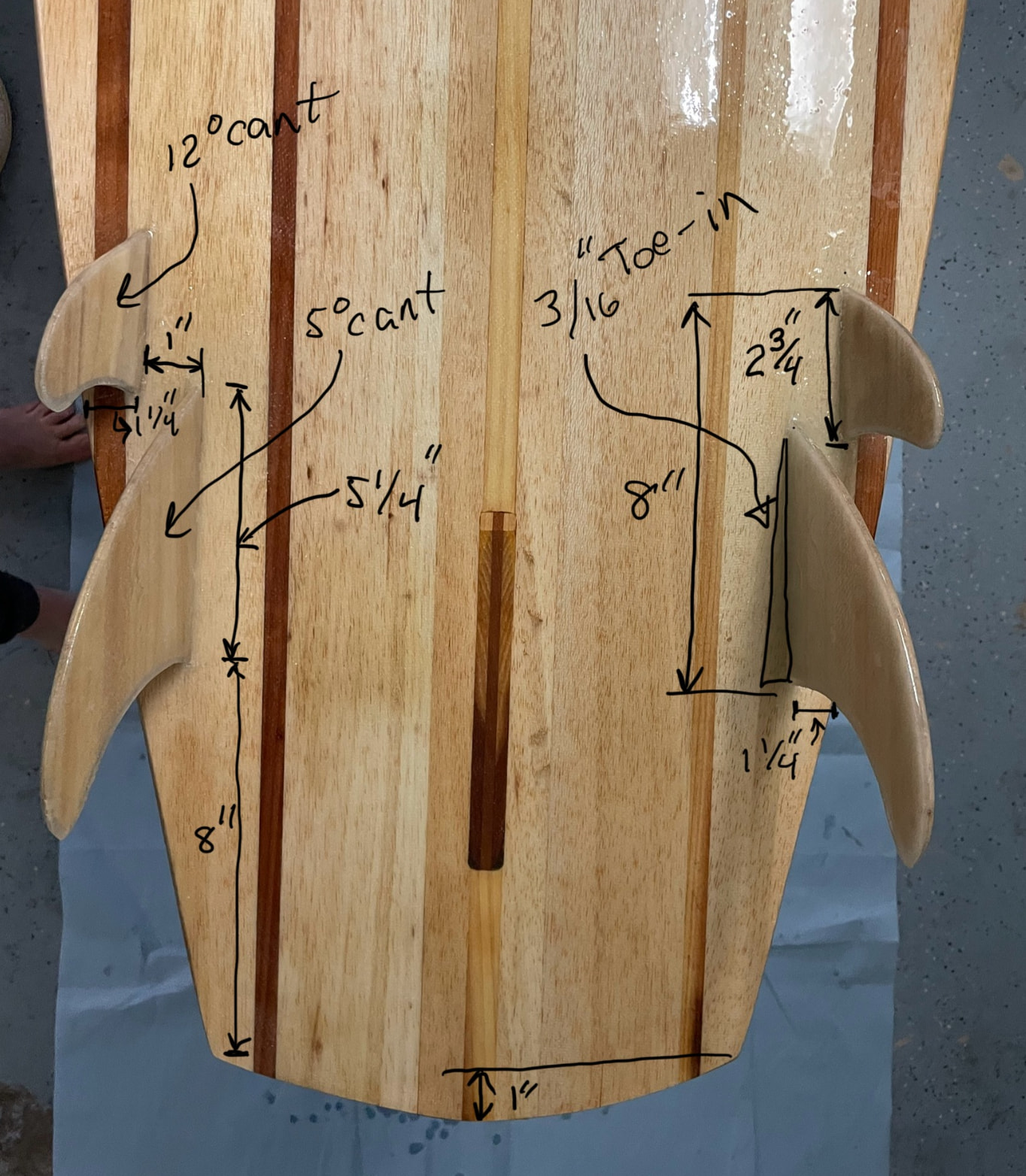

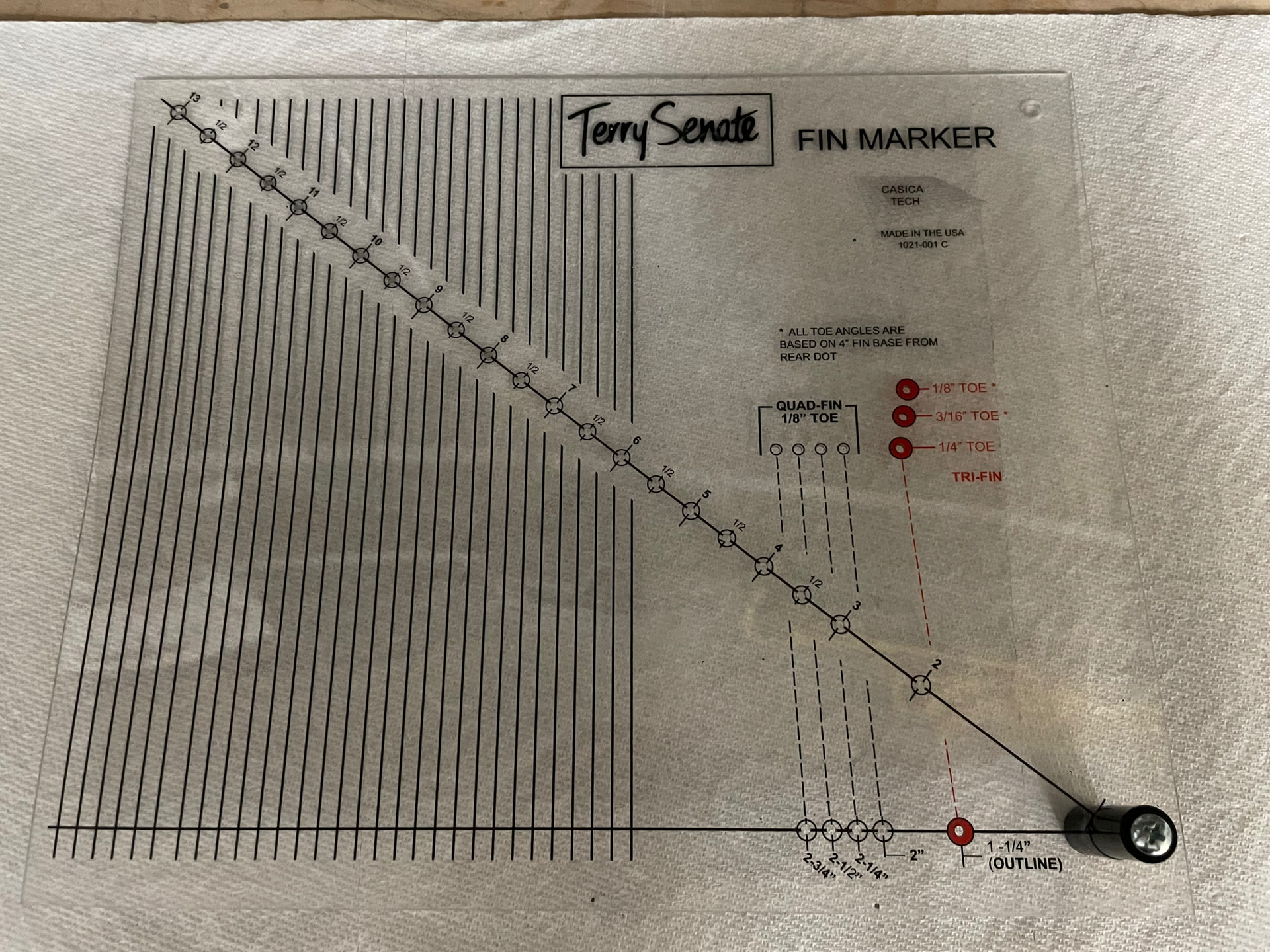

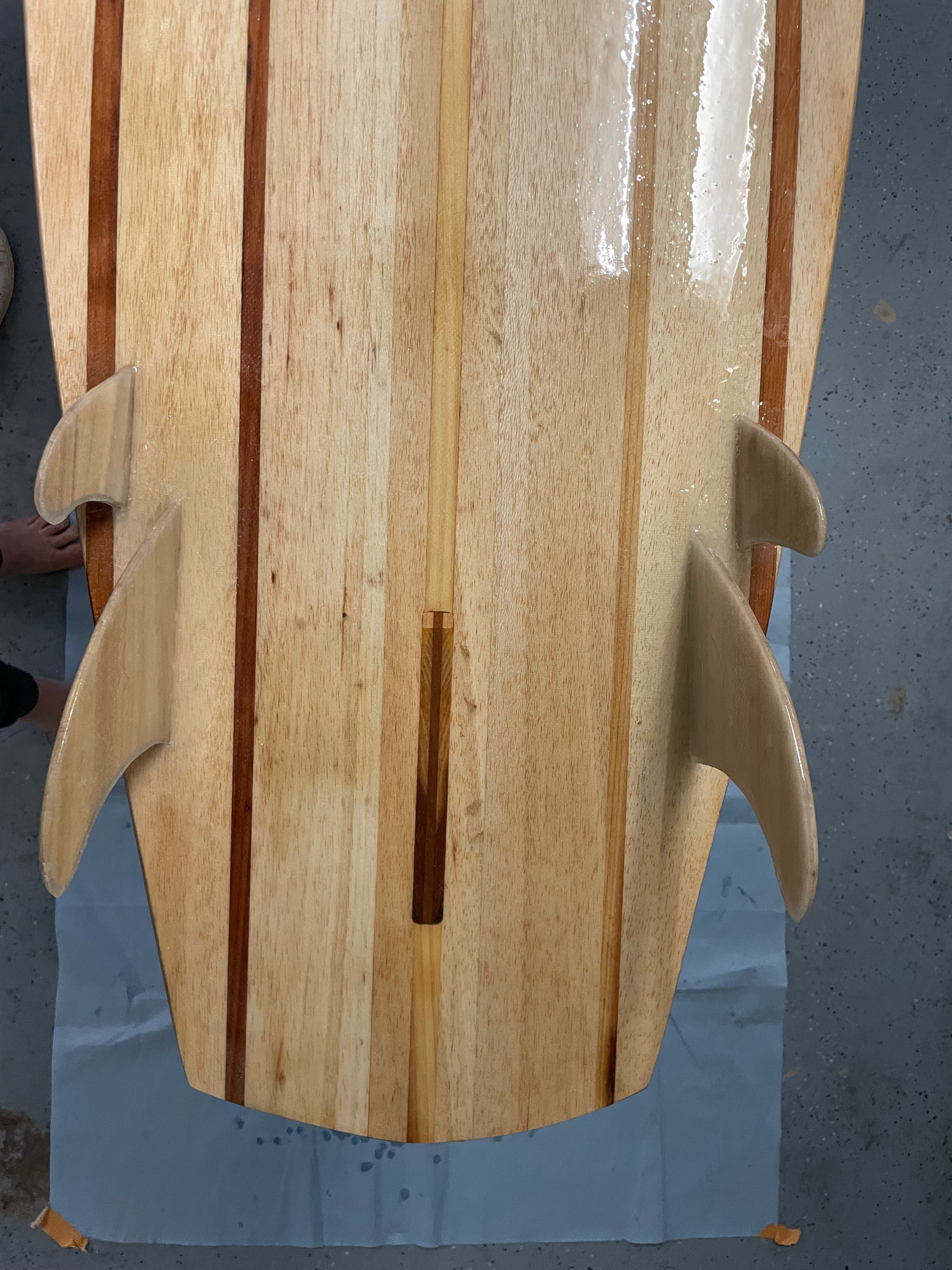

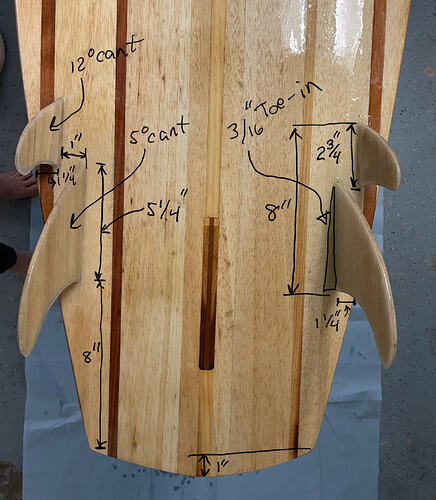

I am also making my first Twinzer build right now. I used the Terry Senate fin marker. I put my rear dots for all four fins at 1.25” from the rail. I added a 3/16” toe for all fins. My rear fins have a 5 degree cant, and the front fins are at 12 degrees. My epoxy hot coat is still wet, so I’ll take the measurements later.
2 Likes
Thank you!
Thats super helpful
Beautiful work mate!
Excellent woodworking skills.
I have been building twins for 5 years now.
8” from tail feels right. As the board frowns in length you need to push fins forward.
Distance from rail I experimented with 1.25” 1.375” and 1.75”. The farther from the rail the more control on the pivot.
I measure my toe base on the orientation in relation to the nose. I measure it with the rocker straight edge.
Cant between 5-6.5 is the sweet spot. 3 is too stiff for me.
Looks great Swied. I have used the Senate fin marker and had a quick tutorial from its inventor(Pete Casica). Been so long since I have used it though, I need to refresh myself on its use. Wish somebody would do a tutorial on YouTube. I always fall back on my Pleskuna shapers square.
Thank you for posting great pics and thanks for measurements
Yeah… I hope the measurements that I posted above work out. I haven’t ridden it yet. Next step is to sand the hot coat, and then spray it with a glossy finish. I’ll let you know how it rides — soon, hopefully.
I checked my toe angle on my rear fins with a long straight edge. The lines intersect about six to eight inches beyond the front of the nose. The board is 6’2” long.
1 Like
Yes that long straight edge is the sure fire way to make sure you are right. Like a glasser with lots of experience told me; ‘ If that line intersects before or right at the tip, your board will be a dog.’
Swied— I like you board rack. I did something similar with a Iron rail.
